Top Beginner Mistakes in Revit

- and How to Avoid Them -

If you are just starting with Autodesk Revit, it’s easy to make mistakes that can slow down your workflow and cause frustration. In this post, we’ll cover some of the most common beginner errors and provide tips on how to avoid them to become more efficient in your Revit projects.

1. Using Text Notes Instead of Tags

Why It’s a Mistake:

Relying on text notes for labeling can lead to inconsistency and errors, especially in large projects.

Why You Should Use Tags Instead:

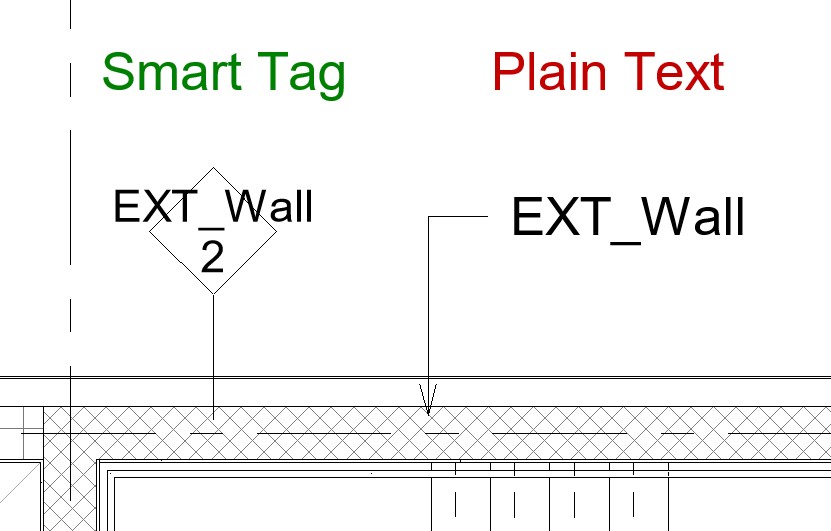

Automatic Updates: Tags are linked to model elements, meaning if a parameter changes (like a door size or room name), the tag automatically updates. For example, if you change the name of a room, the tag will reflect that change, while text notes would require manual updates.

Consistency and Accuracy: Tags ensure consistent information across the drawings. If multiple views reference the same element, using tags maintains uniformity. In contrast, if you use text notes, you risk discrepancies if you manually enter the same information multiple times.

Data Management: Tags can carry metadata from the model, making it easier to extract data for schedules or reports. For instance, a tag for a light fixture can include wattage, manufacturer, and type, which can be pulled into a lighting schedule. Text notes lack this capability and require additional manual entry.

Improved Clarity: Tags are generally designed to be clear and concise, presenting essential information without cluttering the drawing. Text notes can become overwhelming if too much information is included, making it harder for users to read and understand the design.

View-Specific Information: Tags can be set to display different information depending on the view. For example, you might want a door tag to show the door type in one elevation and a different detail in a section view. Text notes would not have this flexibility.

Interoperability: Tags work better with Revit’s built-in features for coordination and collaboration. When sharing models with other disciplines or exporting to other formats, tags maintain the link to the model data, ensuring that all parties have accurate and up-to-date information

2. Using Individual Overrides Instead of Visibility/Graphics Settings

Why It’s a Mistake:

Applying individual overrides can cause inconsistencies across views and make it harder to manage your project efficiently.

Benefits of Using Visibility/Graphics Settings:

Efficiency and Speed: Managing visibility and graphics through the Visibility/Graphics settings allows for quicker adjustments across multiple views. For instance, if a user wants to hide a category like furniture, they can do so in one centralized setting rather than adjusting each view individually.

Consistency Across Views: Visibility/Graphics settings ensure that the same rules apply across different views. If a user overrides visibility for an element in one view, it can lead to inconsistencies in how that element is presented in other views, causing confusion during design reviews or presentations.

Ease of Revisions: When changes are needed, adjusting the Visibility/Graphics settings is much easier than tracking down individual overrides. For example, if a design team decides to show all structural elements in a project, they can simply modify the Visibility/Graphics settings rather than checking each view for individual overrides.

Better Performance: Individual overrides can add complexity and slow down the model's performance. Using Visibility/Graphics settings helps maintain better performance by reducing the computational load, especially in large projects with multiple views.

Improved Collaboration: When working in a collaborative environment, using consistent Visibility/Graphics settings helps ensure that all team members are seeing the same representations of elements. Individual overrides can lead to discrepancies in what different users see, which complicates coordination.

Control Over Annotations and Detail Levels: Visibility/Graphics settings provide better control over the display of annotations and detail levels, allowing users to customize how information appears based on the current project phase or specific requirements. This is more challenging with individual overrides, which can lead to cluttered visuals.

Compliance with Standards: Many firms have specific standards for visibility and graphics. Using centralized settings helps ensure compliance with these standards, while individual overrides can lead to deviations that need to be corrected later.

To master graphics in Revit check out this course: https://balkanarchitect.com/p/graphics-and-appearance-in-revit-course

3. Using Another 2D Software for Detailing

Why It’s a Mistake:

Switching between Revit and other 2D software for detailing can lead to data inconsistencies and a less efficient workflow

Why You Should Detail in Revit:

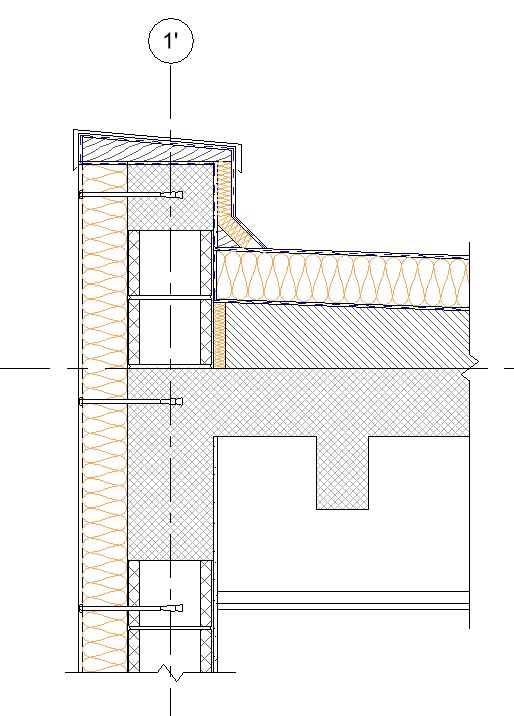

Consistency and Integrity of Data: When detailing within Revit, all elements are part of the same model database. This ensures that any changes in geometry or properties are reflected across all views and sheets. For example, if you adjust the height of a wall, all associated details will update accordingly without the risk of miscommunication or oversight that can occur when switching between software.

Efficiency in Workflow: Detailing in Revit allows for a seamless workflow. You can easily create detail views from existing model elements without having to redraw them in another software. This saves time and effort. For instance, if you need a detailed section of a window, you can simply create a callout in Revit, and it will automatically show the section detail linked to the model.

Enhanced Clarity through 3D Visualization: Revit's 3D capabilities allow for better visualization of details. You can create detailed 3D views that show how components come together, which is often difficult to convey in 2D. This can be crucial for complex junctions, like roofing details where multiple materials intersect.

Automatic Updates for Details: When modifications are made to the model, Revit automatically updates corresponding details. For instance, if a roof pitch changes, the related flashing and drainage details will adjust accordingly, ensuring accuracy and reducing the possibility of inconsistencies.

Integrated Annotation Tools: Revit provides tools for annotations, tags, and dimensions that are directly linked to the model elements. This means that if a component's size changes, the annotations will adjust, preventing errors that could arise from manual updates in a 2D program.

Coordinated Workflows within Disciplines: Using Revit for detailing allows architects, engineers, and contractors to work within the same platform. This integrated approach facilitates better coordination and collaboration, reducing the chances of clashes that can occur when using separate tools

Master detailing in Revit: https://balkanarchitect.com/p/revit-detailing-masterclass

4. Non-Constraining or Over-Constraining Elements

Why It’s a Mistake:

Incorrectly constraining elements can lead to errors in your model, making it harder to manage changes.

Balancing Constraints:

No Constraints:

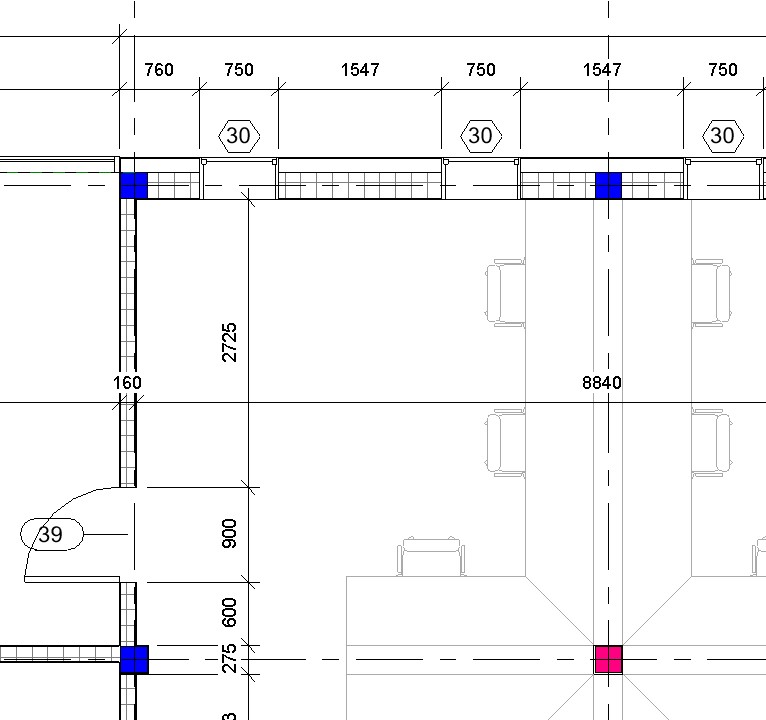

Issue: Elements without constraints can lead to unpredictable behavior. For example, if walls or floors are not constrained, they may shift unexpectedly during design changes, leading to misalignment with other elements.
Example: If a wall isn't constrained to a grid line, it might move during a design update, causing clashes with doors or windows.

Over-Constraining:

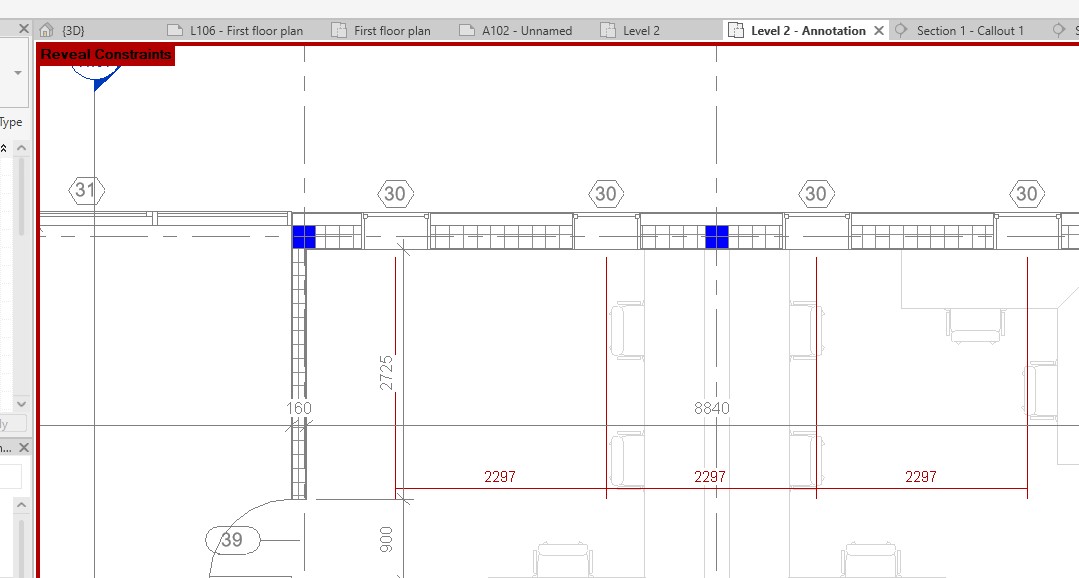

Issue: Over-constrained elements can create conflicts and prevent modifications. This often results in error messages that can be difficult to resolve.
Example: If you constrain a beam to a column while also setting a fixed distance to another beam, any attempt to move one element can trigger a cascade of constraint violations, complicating the design process.

Striking the right balance with constraints enhances model integrity, simplifies adjustments, and aids collaboration among team members. Keeping constraints logical and purposeful ensures a smoother workflow in Revit.

To learn more about advanced concepts in Revit, check out this course: https://balkanarchitect.com/p/autodesk-revit-course-intermediate-to-advanced-level

5. Not Duplicating Types Before Editing Parameters

Why It’s a Mistake:

Modifying the original type directly without duplicating it can lead to the loss of the important data and affect your entire project.

Why You Should Duplicate Types:

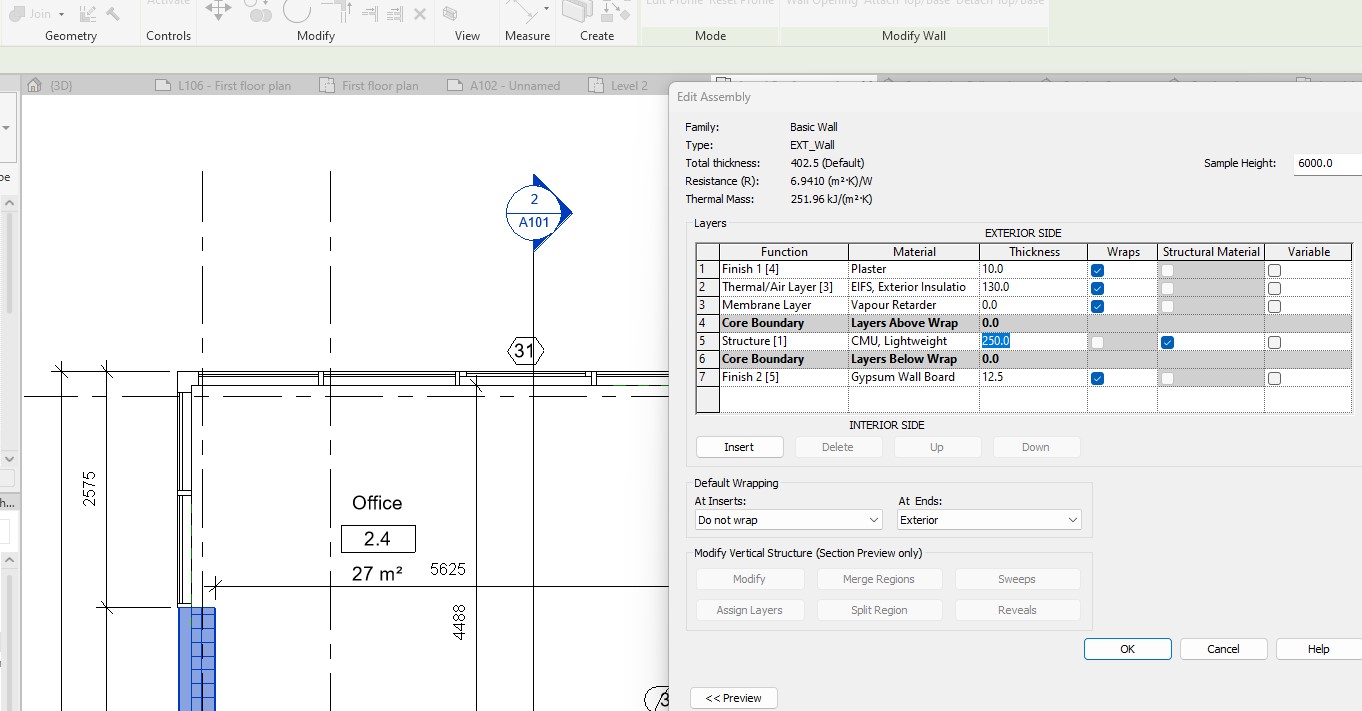

Preservation of Original Data: If you edit parameters directly on the original type without duplicating, you risk losing the default settings and properties that may be needed later. For example, if you have a window type you want to modify, changing its parameters directly means you can't easily revert to its original configuration if needed.

Ease of Updates: Duplication allows you to modify a copy, keeping the original intact for future reference.

Clear Versioning: Duplicating types helps maintain a clear version history within the project. For instance, if you create a variant of a door type (e.g., "Door Type A" to "Door Type A - Config 1"), it becomes easier to track changes and understand the evolution of your design.

Better Collaboration: In team projects, duplicating types prevents confusion and errors caused by multiple people editing the same type.

Correct Scheduling and Documentation: Duplicating types ensures that any new variations are accounted for in schedules and documentation. If you don't duplicate, alterations could lead to discrepancies in your project schedules, which could affect budgeting and planning.

By avoiding these common Revit mistakes, you can improve your workflow, increase accuracy, and streamline your design process. Ready to learn more?

To master family creating in Revit and all best practices check out our course on the Revit Family Editor: https://balkanarchitect.com/p/revit-family-editor-complete-course
