Revit Stairs & Railings Pack
All included Stairs and Railings:
15 Stair types and 10 Railing types in total
Stairs

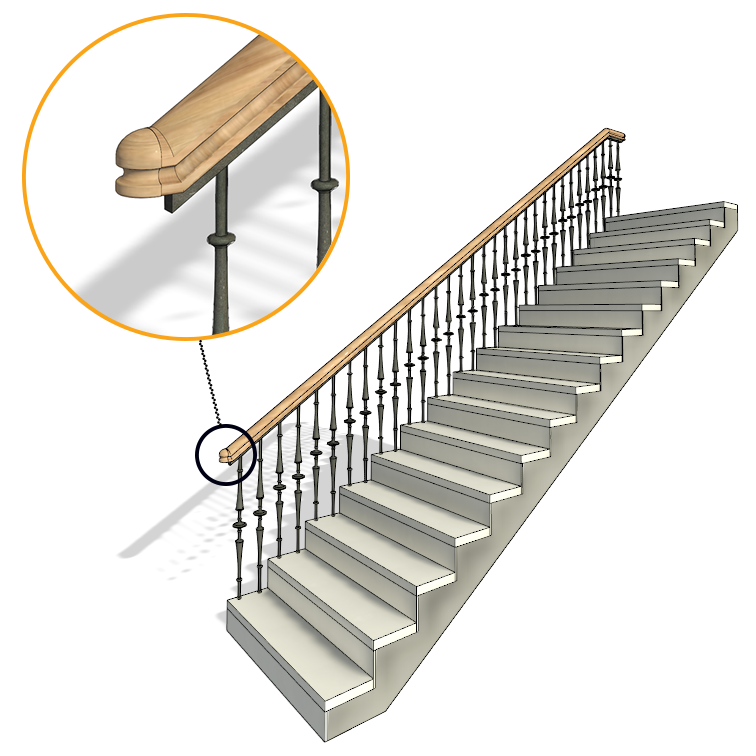

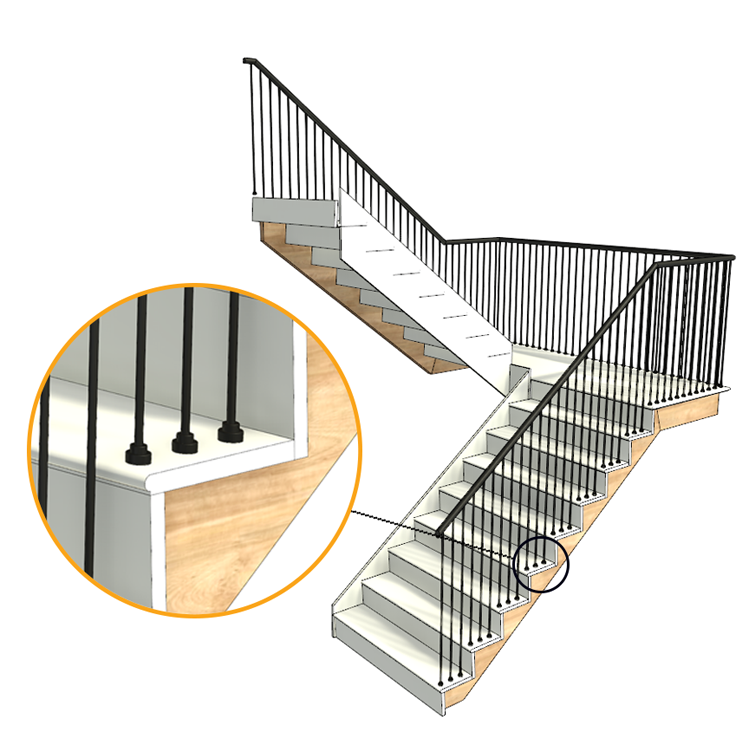

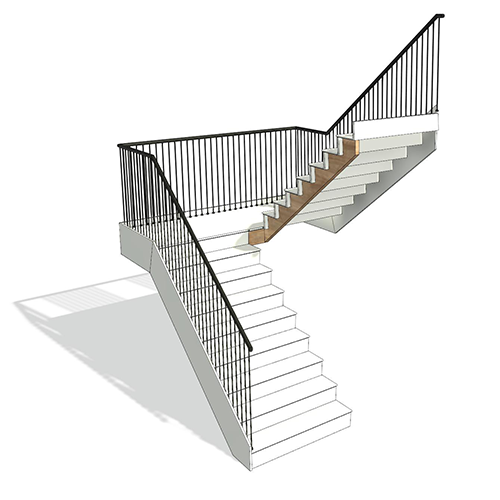

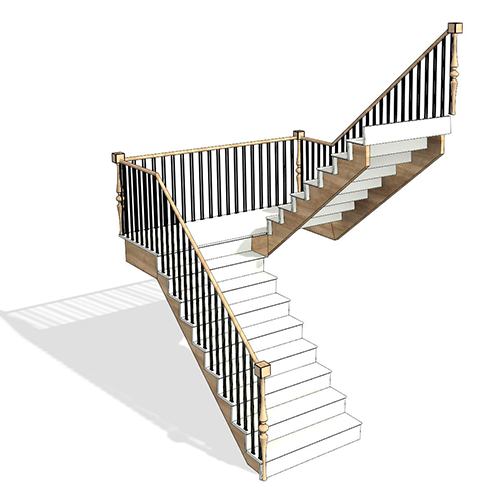

- American Classic 01
- American Classic 02
- Custom Stringer Profile
- Middle Wooden Support Cantilever
- Middle Steel and Wooden Support Cantilever
- Middle Flat Steel Support Cantilever
- Glass Stairs X Support
- Glass Stairs H Support
- Simple Cantilever
- Arabic Compiled Style
Spiral Stairs
- Cantilever Wooden Support
- Cantilever Steel 01
- Cantilever Steel 02
- Monolithic 01 (Stringer-Rail+Toprail)
- Monolithic 02 (Stringer-Rail+Handrail)

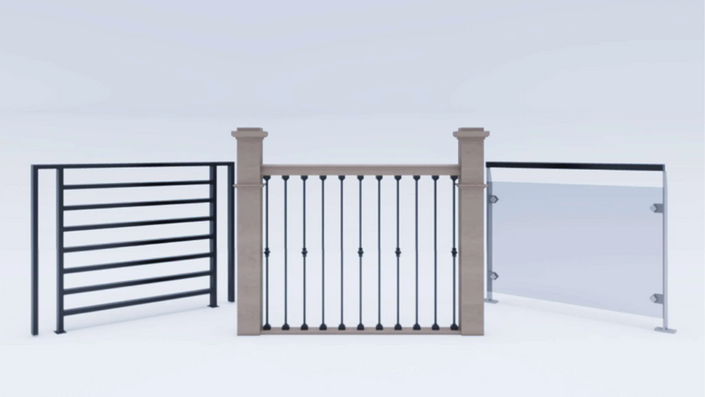

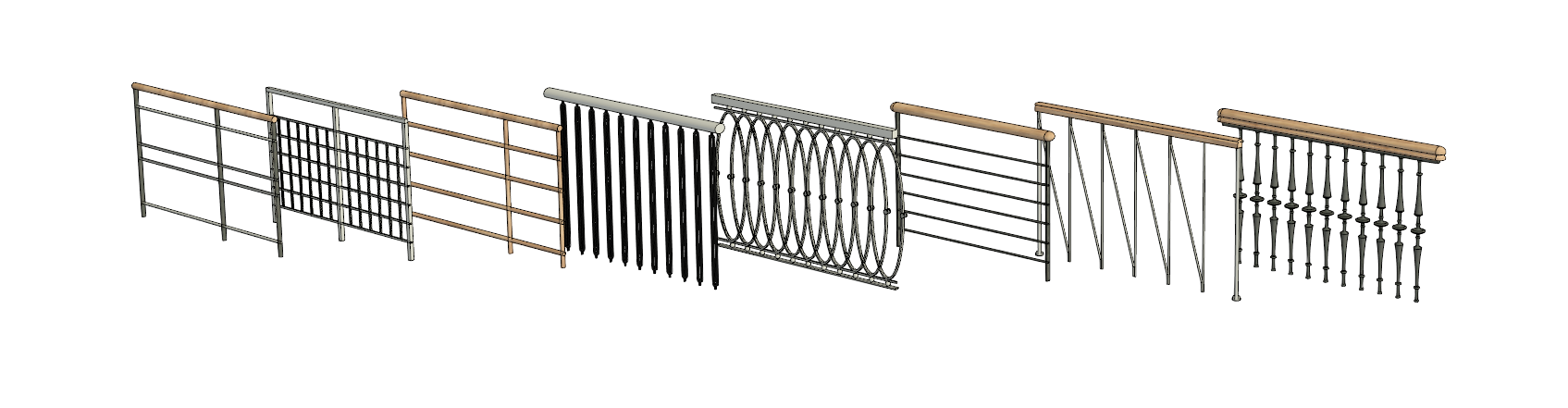

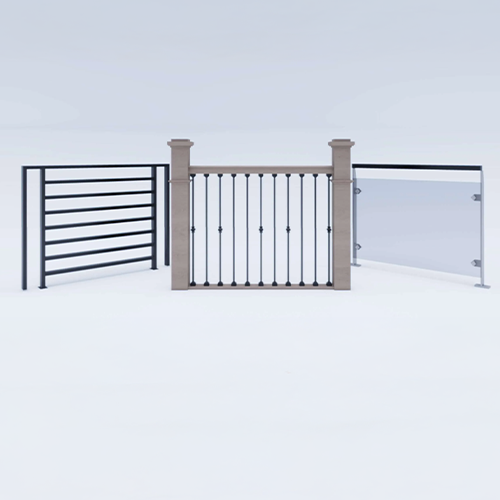

Railings

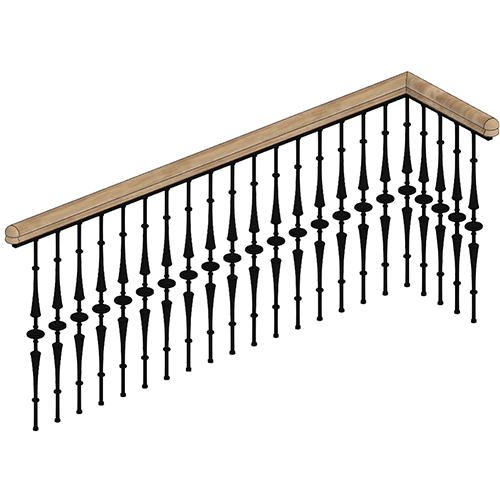

- American Classic
- Simple Modern
- 'V' Baluster
- Square
- BA_Pipes
- BA_Fillet Pair
- Floor to Floor

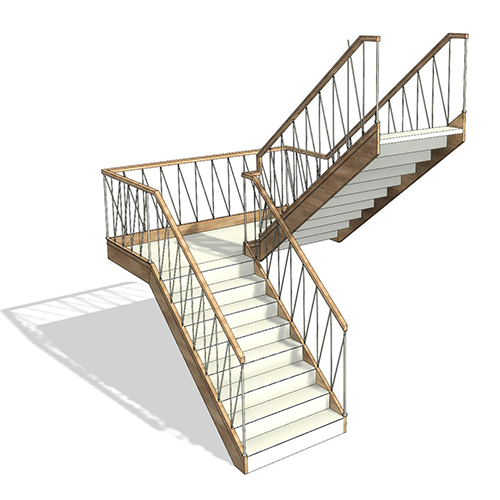

- 'V' Baluster Striner
- 'O' Baluster Floor
- Arabic Style

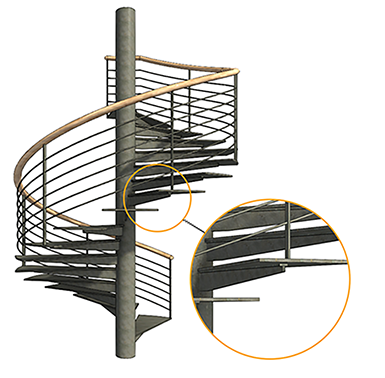

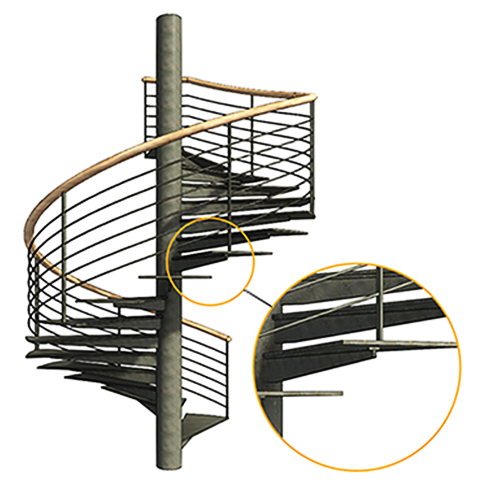

Spiral Canteliver Steel Support
This type of central steel support is most suitable for circular stairs

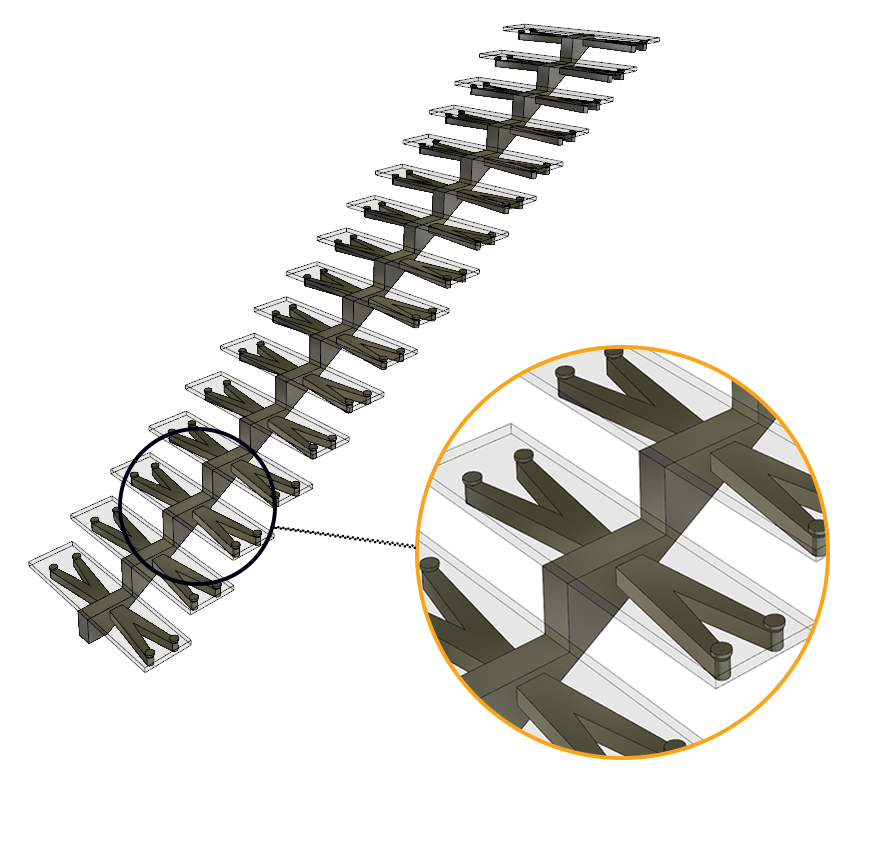

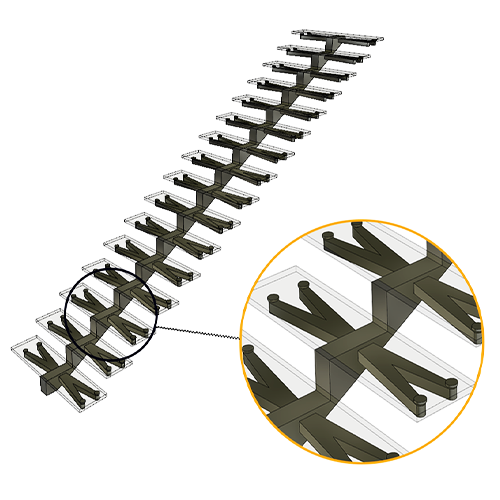

X Support Glass Stair
For glass cantilever stairs there are two support options: X support and H support

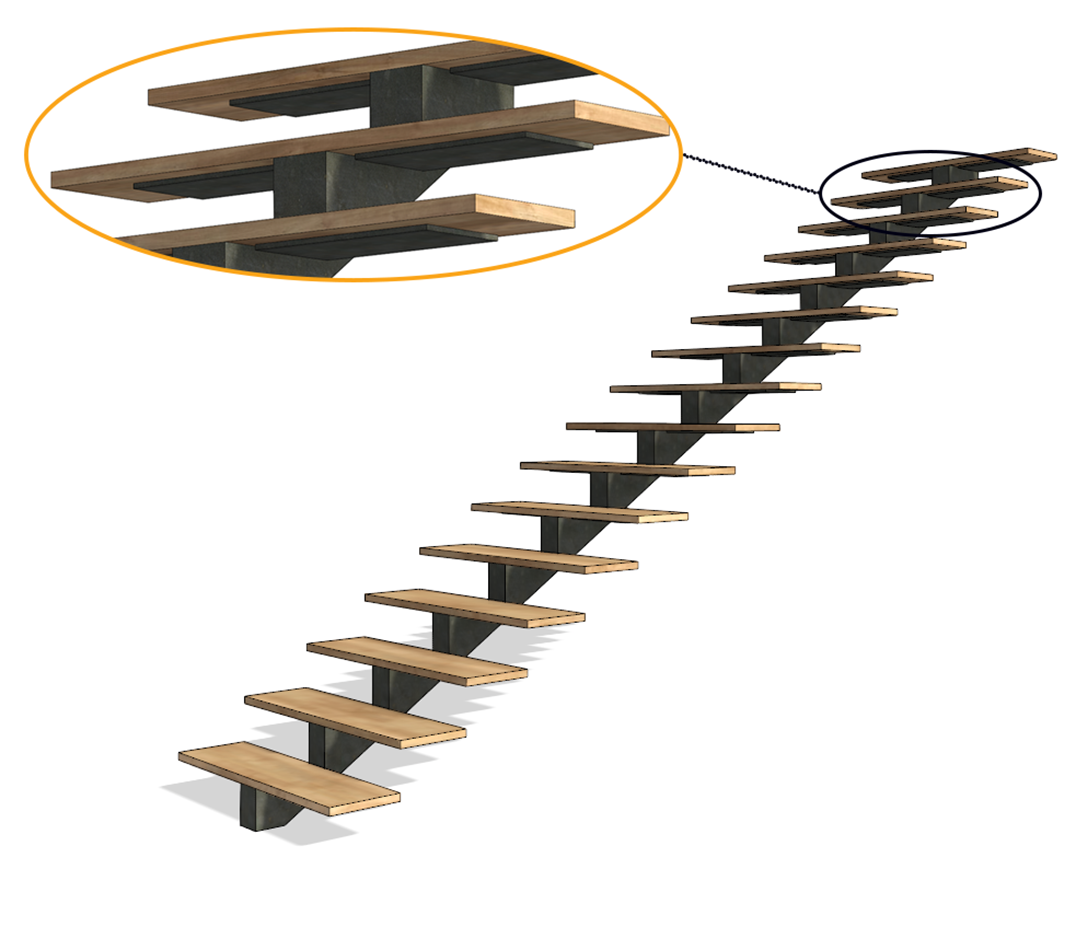

Middle Flat Steel Support
Flat steel support is a convenient way of supporting wooden cantilever stairs

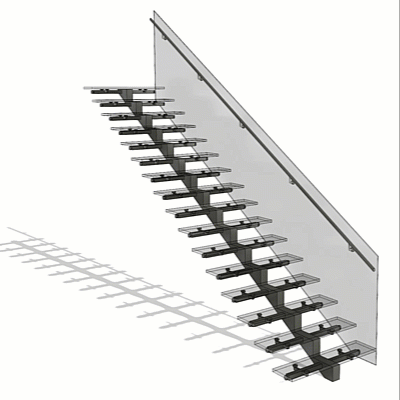

Glass Stairs
There are two types of glass stairs in relation to supports:
Glass Stairs X support | |

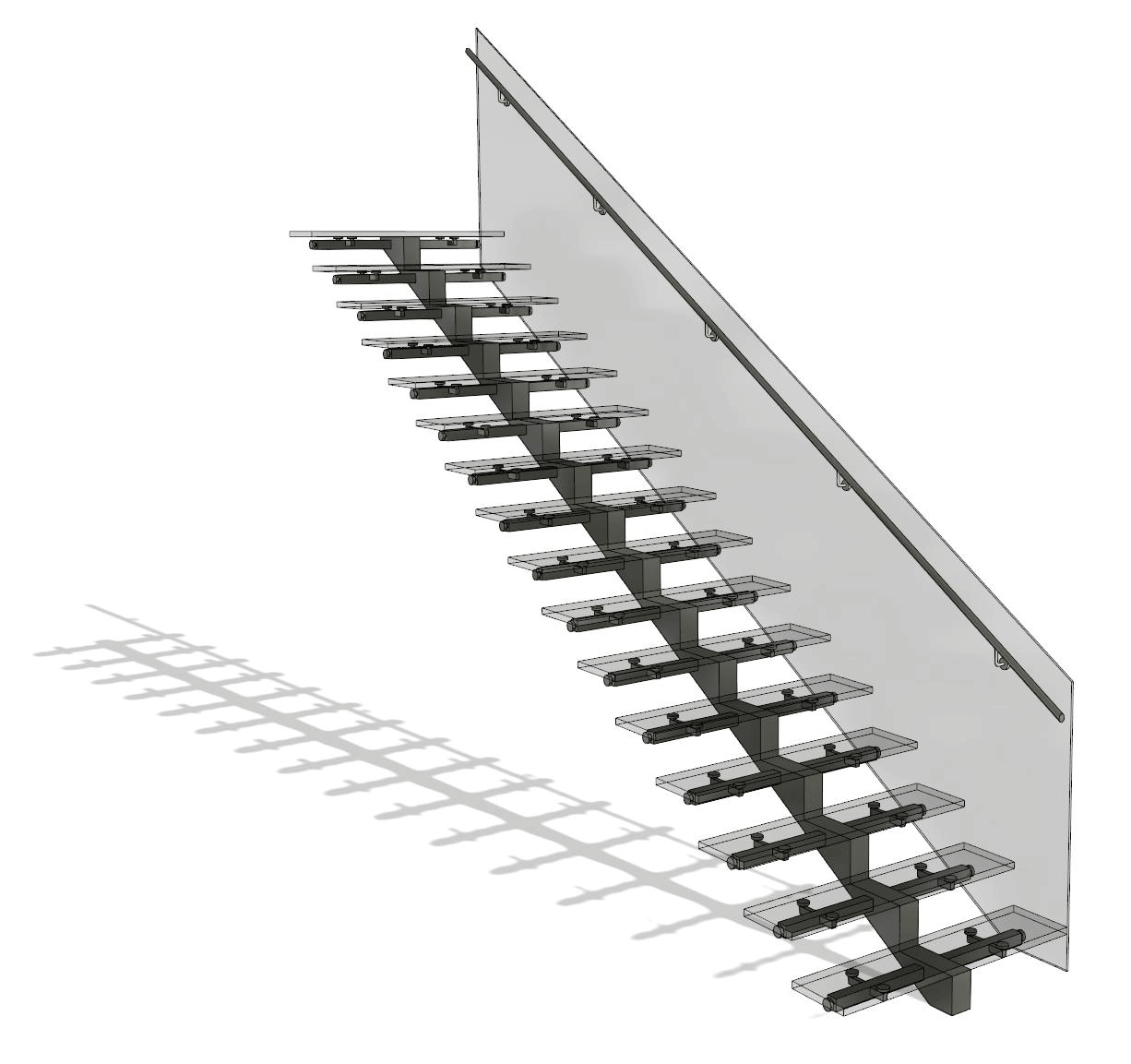

Glass Stairs H support |

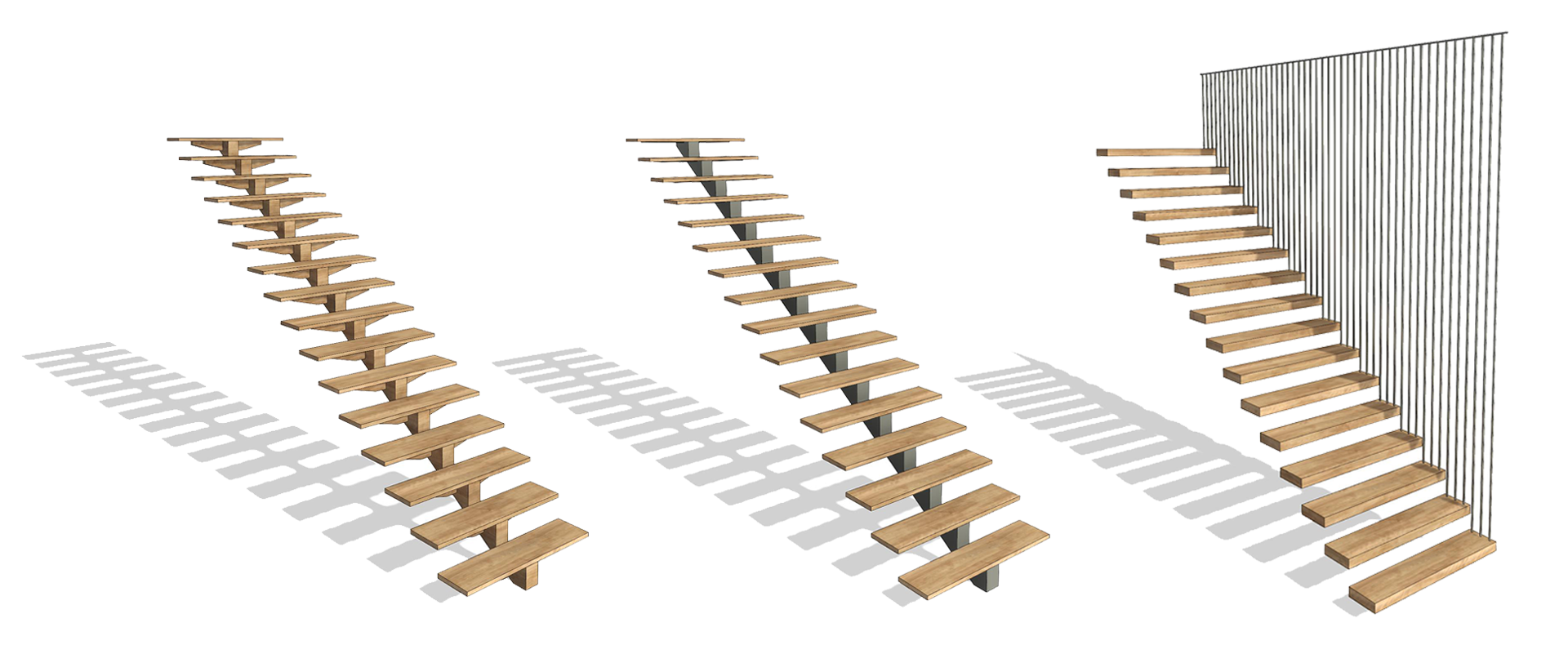

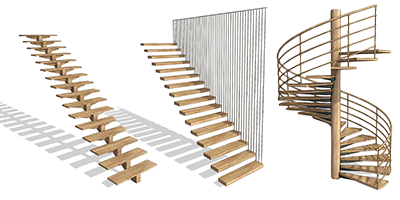

Cantilever Stairs
Railings
Spiral Stairs
There are 3 types of Cantilever spiral stairs:
Cantilever Wooden Support | |
Cantilever Steel 01 | |
Cantilever Steel 02 |

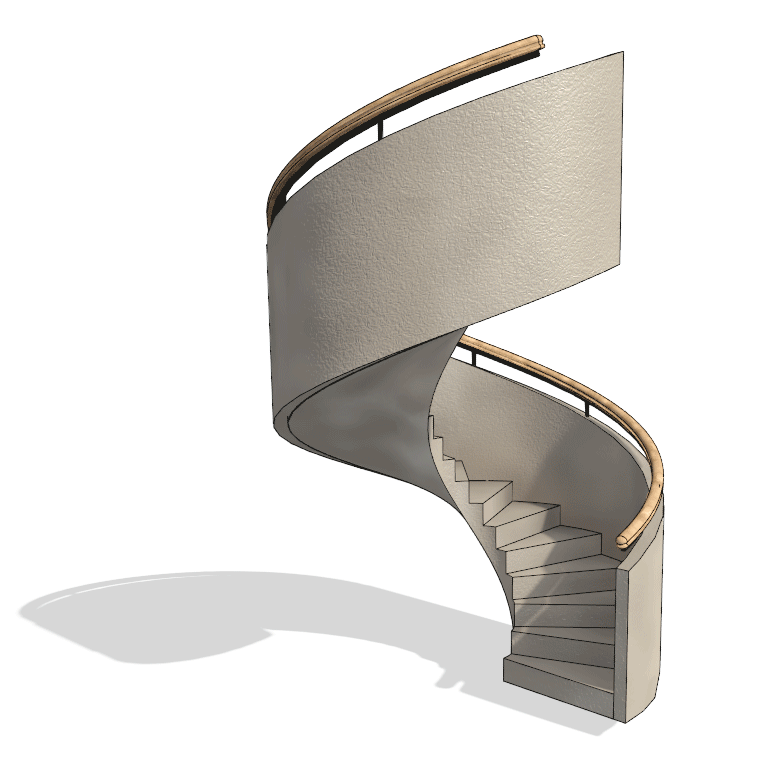

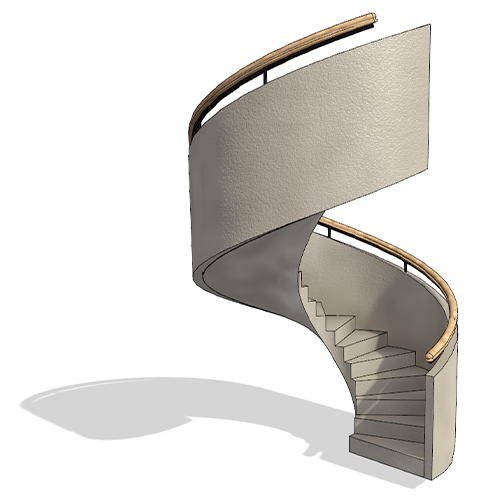

And two types of Monolithic spiral stairs:
Monolithic 01 (Stringer-Rail+Toprail) | |
Monolithic 02 (Stringer-Rail+Handrail) |

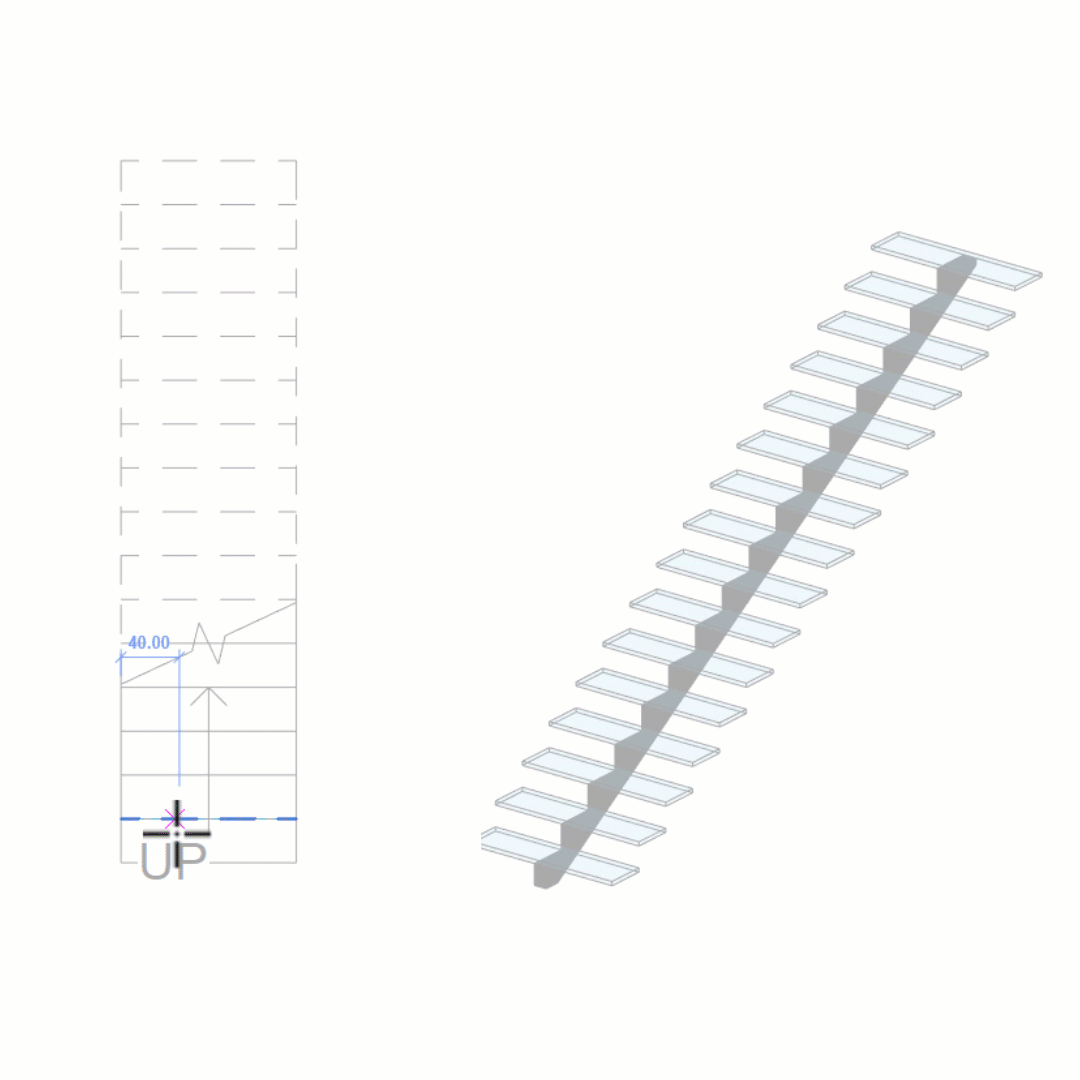

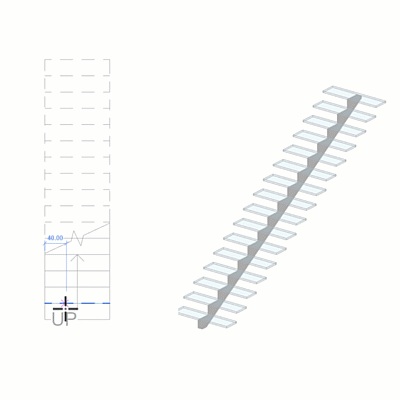

Placing supports
Stairs are very complicated and that's why it's necessary to have educational videos on how to use each type.
Get instant access to 15 stair and 10 railing families
$59
One-time payment
Important: All families are available in Revit 2021 and newer versions of Revit (2022, 2023, 2024...)
