BS AR Plug-In for Revit
This is a set of additional tools for Revit that help automate processes, relieve designers from routine and increase their efficiency

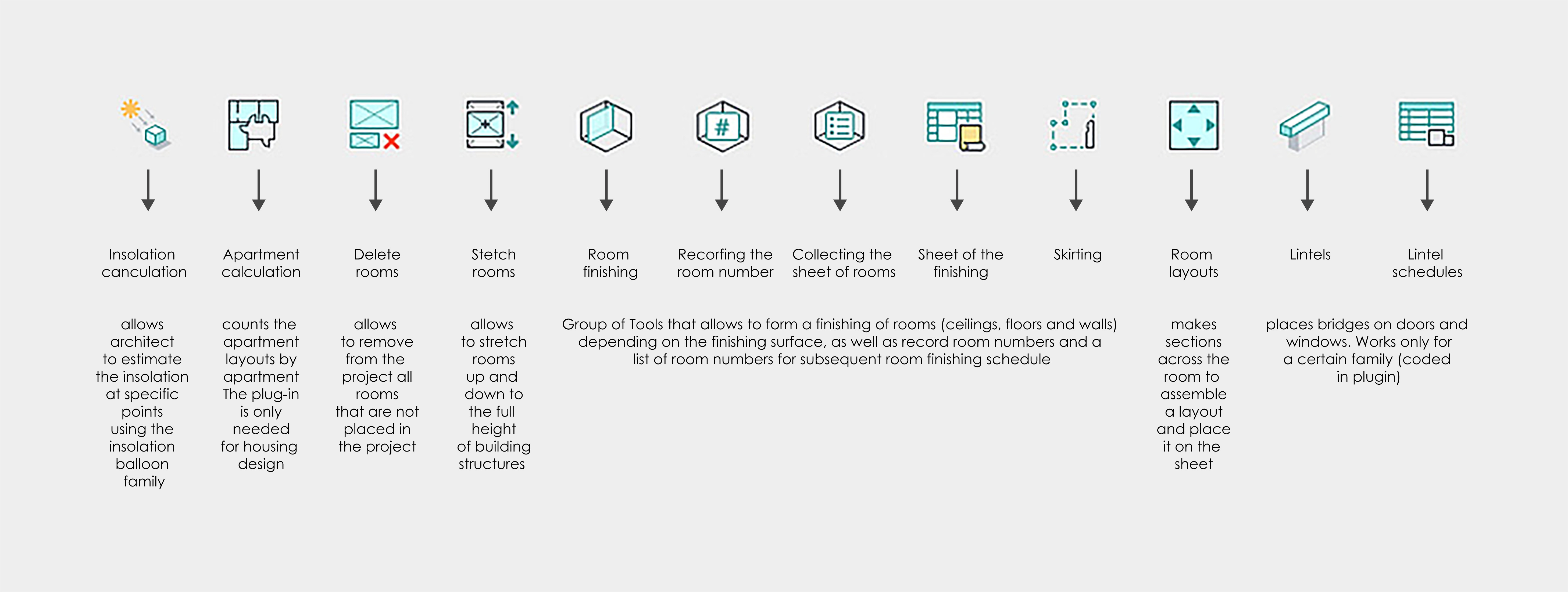

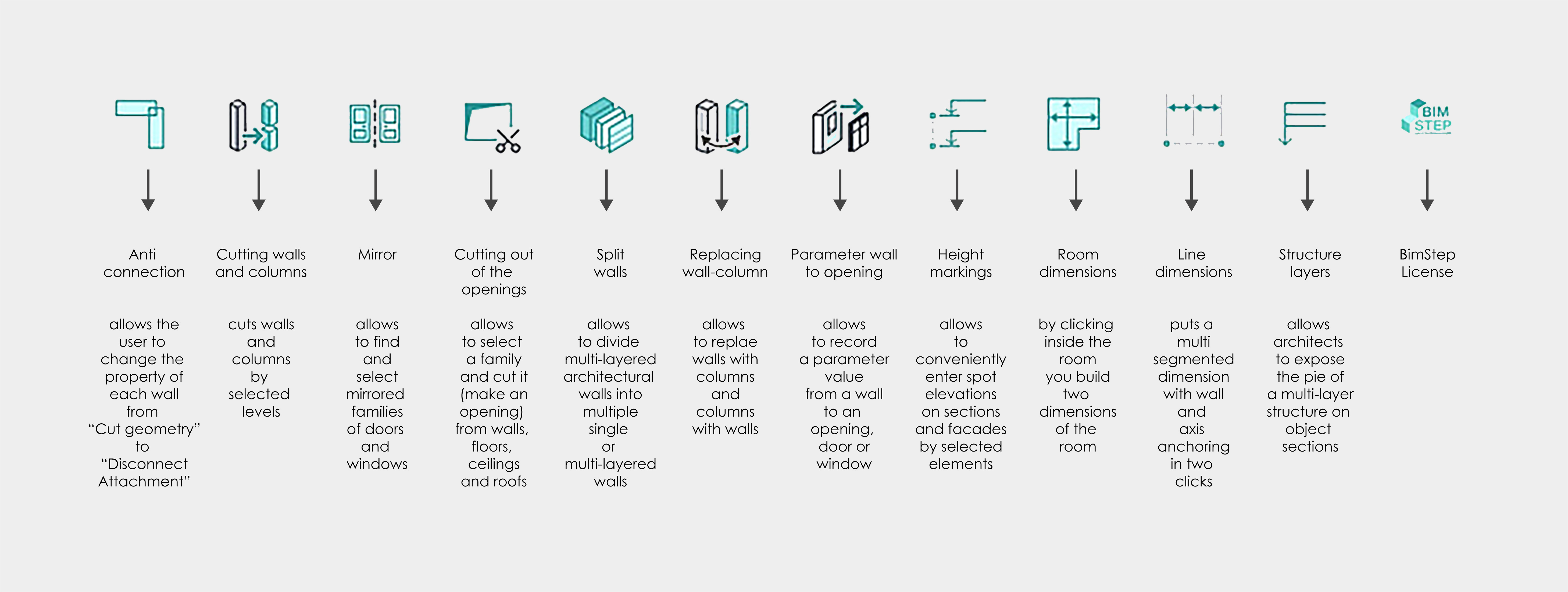

Here's a quick overview of all of the tools and features that are included:
Some highlights:

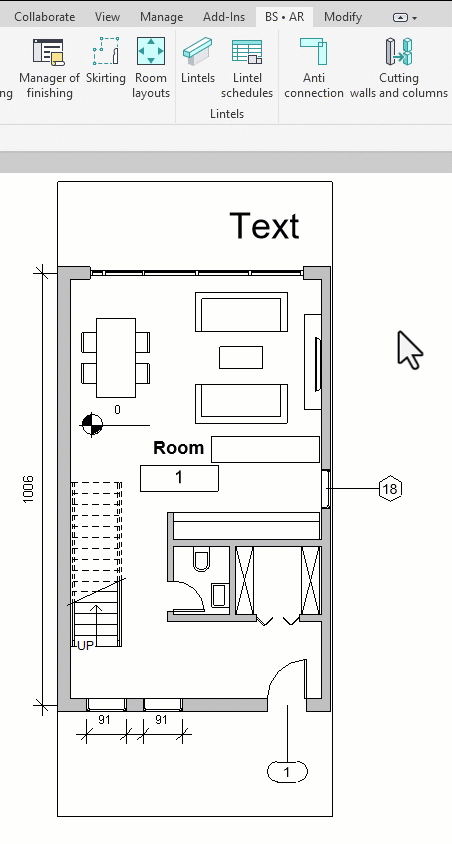

Anti-connection Tool
Anti-connection - this tool enables easy conversion of wall and beam properties from "Cut Geometry" to "Detach Attachment" with a simple click, eliminating the need for manually clicking numerous times. Speed up your workflow and enhance productivity with Anti-connection!

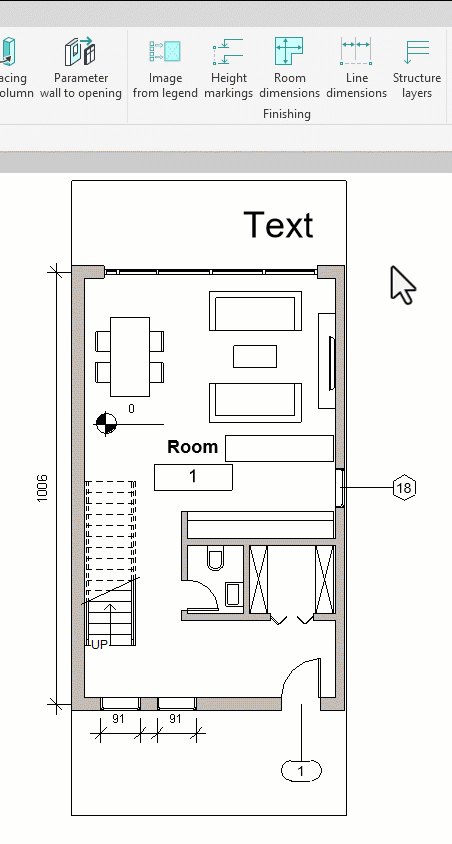

Line dimensions Tool
Line Dimensions - with just two clicks, easily dimension walls and grids, saving you from clicking between lines. Streamline your workflow and enhance precision with Line Dimensions!

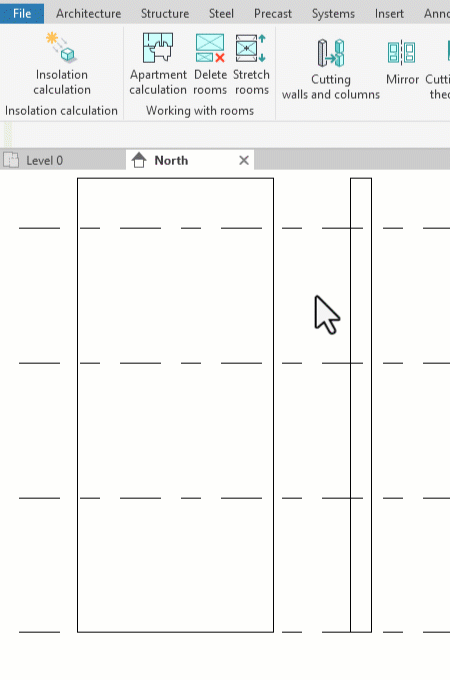

Cutting walls and columns
Cutting walls and columns – this tool allows for fast and efficient cutting of walls and columns at selected levels with just a few clicks.
Educational videos included:
- 1.1 - Parameter Wall to opening (1:58)
- 1.2 - Anti Connection (0:22)
- 1.3 - Line dimensions (0:53)
- 1.4 - Cut walls and column (1:22)
- 1.5 - Split multilayer walls (1:42)
- 1.6 - Replacing Walls-Columns (1:37)
- 1.7 - Delete rooms (1:59)
- 1.8 Lintels (7:45)
- 1.9 Mirror (1:46)
- 1.10 Insulation Calculation (9:33)
- 1.11 Height Marks (1:51)
- 1.12 Structure Layers (9:32)
- 1.13 Stretch Rooms (3:15)
*Plug-in is compatible with Revit versions 2019 to 2025.
